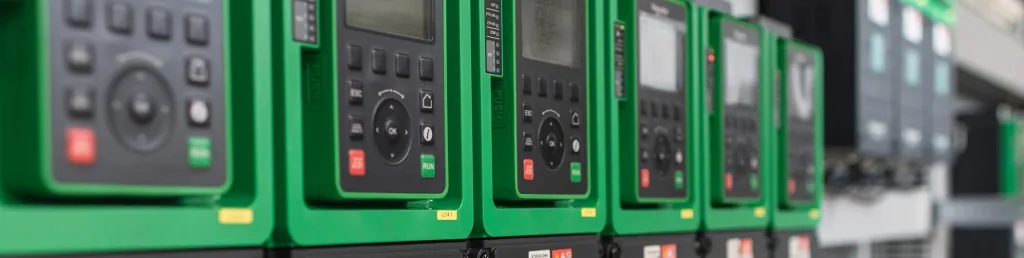

How to Choose the Right Variable Frequency Drive (VFD)?
Efficiency and accuracy are the guiding principles in today’s industrial operations. Using a variable frequency drive (VFD) is one of the most effective ways to ensure reliable and smooth electric motor control. A VFD controls the speed and torque of an electric motor concerning energy consumption, performance, and life. There are infinite options on the market, meaning choosing the most appropriate VFD is quite complex.
Therefore, let us simplify by looking at the main considerations when choosing a variable frequency drive (VFD) along with complementary components that enhance the VFD’s performance, including the Schneider water pump pressure switch, MCB breaker, electric changeover switch, electric pole isolating switch, and DIN rail terminal block.
Determine the Type of Load and Application
The first step to selecting a VFD that fulfils the requirements is understanding the load type and where or in what application the motor will be used. VFDs can mostly be used to control the operations of motors in any application, including water pumps, conveyor systems, and HVAC systems. If you decide to use a variable frequency drive to control a water pump, perhaps also consider integrating a Schneider water pump pressure switch with your setup for pump operation optimization to avoid unnecessary wear and tear costs.
Different applications require various kinds of VFDs. A constant-torque load such as a conveyor or mixer will need the VFD to provide high torque at low speeds, during which such VFDs accommodate flexibly-varied loading levels, which suit variable torque loads (fans, pumps).
Match the VFD to Motor Specifications
Every motor is bound by parameters like voltage, current, and power rating. Ensure that the Variable Frequency Drive you plan to select matches the motor’s voltage and current specifications. Select the VFD with the proper power rating to avoid overload and ensure that your motor operates at the utmost efficiency.
As an additional precaution, you can install an MCB breaker into the wiring so that the system is safeguarded from overload. You may also incorporate an electric switch-over switch to switch over between power sources, should there be a need for it; thus, the motor and the VFD will not be without necessary power during power breaks.
Consider the Control Method
VFDs come with several control options, including voltage-frequency (V/F), open-loop vector, and closed-loop vector control. The control method determines how the VFD communicates with the motor to control its speed and torque.
- V/F Control: Ideal for simple applications with constant load.
- Open-loop Vector Control: Suitable for applications where moderate precision is needed.
- Closed-loop Vector Control: Best for high-performance applications requiring precise motor control.
Choose the right control method for your needs depending on your system’s complexity. More advanced control methods may come with additional equipment like an electric pole isolating switch, which ensures safety by isolating the motor in case of maintenance or during emergencies.
Take into Account Environmental Conditions
The environment in which your VFD will be used is also critical. Factors such as temperature, humidity, dust, and exposure to corrosive substances can affect the performance of the drive. Make sure the VFD you select is designed to handle the specific environmental conditions of your location.
If your VFD is placed in harsh conditions, opt for VFDs with high ingress protection (IP) ratings. These ratings indicate the VFD’s ability to resist dust and moisture. Additionally, consider using components like DIN rail terminal blocks for organizing and securing wiring, especially in industrial environments where space and safety are key concerns.
Evaluate the Size and Installation Flexibility
VFDs come in various sizes depending on their application and motor size. For some installations, compact VFDs may be ideal, while others may require larger drives. Also, ensure that your VFD fits into the available installation space. Modular VFD designs can offer flexibility in installation, allowing you to expand your system in the future.
Using components like DIN rail terminal blocks can streamline the installation process, as they are designed to make wiring easier and safer. For more complex installations, consider a Schneider water pump pressure switch, which offers added control and protection to the pump motor when integrated with your VFD.
Ensure Safety and Protection Features
When choosing a VFD, safety should be a top priority. Look for drives equipped with built-in safety features such as overvoltage, overcurrent, and short-circuit protection. Additional protection can be integrated using components like MCB breakers to protect your system from power surges and overloads.
In the event of a power failure or emergency, an electric changeover switch can help transition between power sources without damaging the VFD or motor. Furthermore, an electric pole isolating switch can safely isolate the power supply for maintenance or repair work, preventing accidents.
Monitor and Control
Many modern VFDs come with built-in monitoring features, including real-time feedback on motor performance, energy consumption, and system diagnostics. This is particularly useful in industrial settings where efficiency is crucial. Advanced VFD models may allow remote monitoring through a network connection, allowing operators to manage the system remotely.
To ensure seamless operation, integrating components like a Schneider water pump pressure switch can give real-time pressure data and shut off the pump when the system reaches its required pressure level, reducing wear and tear.
Conclusion
Choosing the right Variable Frequency Drive (VFD) involves understanding your motor and application requirements, considering environmental conditions, and evaluating the specific features you need. By selecting a VFD with the correct specifications and integrating it with the proper protection and control equipment—such as MCB breakers, electric changeover switches, and DIN rail terminal blocks—you can ensure efficient and reliable performance for your motor systems.
Whether you’re operating industrial pumps, HVAC systems, or other applications requiring precise motor control, the right VFD will deliver energy savings, enhanced performance, and long-term reliability. At Cavalotec, we provide the expertise and high-quality products you need to ensure that your VFD system operates seamlessly.
If you need help selecting the perfect Variable Frequency Drive, we’re here to provide tailored solutions to meet your unique needs.
